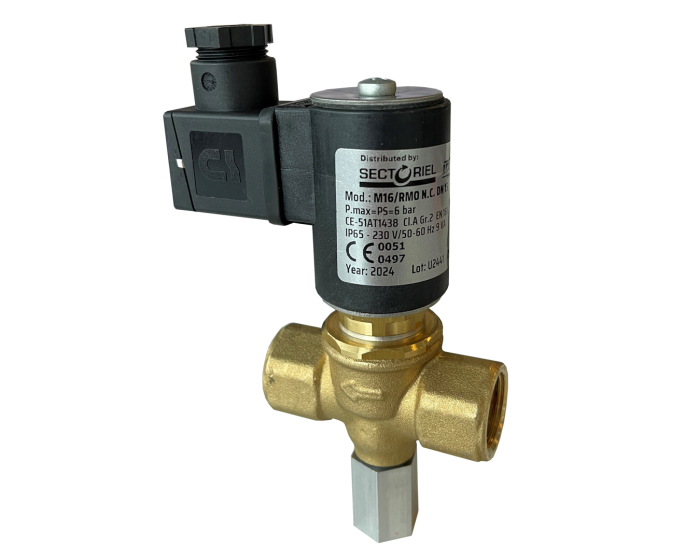

The manual reset solenoid valve type M16/RM 6 bar is a normally closed (NC) brass gas valve for natural gas and LPG.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Connector | T30 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 66.0 |
| Fluid | Natural gas / LPG |
| Protection index (IP) | IP 65 |
| Body material | Brass |
| Slow opening | No |
| Position | Normally closed |
| PS (bar) | 6 |
| PS (mbar) | 6000 |
| Power (VA) | 9 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | -20 |
| Gas solenoid valve type | with manual reset |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass DN15 - 1/2'' BSP FF 230 V AC | 092102M | S1013074 |
€76.67
(excl. btw)
|
add to cart |
| BSP FF Brass DN20 - 3/4'' BSP FF 230 V AC | 092103M | S1013075 |
€76.67
(excl. btw)
|
add to cart |
| BSP FF Brass DN25 - 1'' BSP FF 230 V AC | 092104M | S1013076 |
€88.31
(excl. btw)
|
add to cart |
| BSP FF Brass DN32 - 1''1/4 BSP FF 230 V AC | 092105M | S1013077 |
€153.37
(excl. btw)
|
add to cart |
| BSP FF Brass DN40 - 1''1/2 BSP FF 230 V AC | 092106M | S1013078 |
€153.37
(excl. btw)
|
add to cart |
| BSP FF Brass DN50 - 2'' BSP FF 230 V AC | 092107M | S1013079 |
€178.93
(excl. btw)
|
add to cart |
| BSP FF Brass DN50 - 2'' 230 V AC Flanged PN16 | 092108M | S1013080 |
€248.64
(excl. btw)
|
add to cart |
| BSP FF Brass DN65 - 2''1/2 230 V AC Flanged PN16 | 092109M | S1013081 |
€497.26
(excl. btw)
|
add to cart |
| BSP FF Brass DN80 - 3'' 230 V AC Flanged PN16 | 092110M | S1013082 |
€504.24
(excl. btw)
|
add to cart |
| BSP FF Brass DN100 - 4'' 230 V AC Flanged PN16 | 092111M | S1013083 |
€880.66
(excl. btw)
|
add to cart |
| BSP FF Brass DN125 - 5'' 230 V AC Flanged PN16 | 092112M | S1013084 |
€1,693.93
(excl. btw)
|
add to cart |
| BSP FF Brass DN150 - 6'' 230 V AC Flanged PN16 | 092113M | S1013085 |
€1,726.49
(excl. btw)
|
add to cart |
| BSP FF Brass DN200 - 8'' 230 V AC Flanged PN16 | 092114M | S1013086 |
€3,846.86
(excl. btw)
|
add to cart |
| BSP FF Brass DN15 - 1/2'' BSP FF 24 V AC | 092122M | S1013087 |
€76.67
(excl. btw)
|
add to cart |
| BSP FF Brass DN20 - 3/4'' BSP FF 24 V AC | 092123M | S1013088 |
€76.67
(excl. btw)
|
add to cart |
| BSP FF Brass DN25 - 1'' BSP FF 24 V AC | 092124M | S1013089 |
€88.31
(excl. btw)
|
add to cart |
| BSP FF Brass DN32 - 1''1/4 BSP FF 24 V AC | 092125M | S1013090 |
€153.37
(excl. btw)
|
add to cart |
| BSP FF Brass DN40 - 1''1/2 BSP FF 24 V AC | 092126M | S1013091 |
€153.37
(excl. btw)
|
add to cart |
| BSP FF Brass DN50 - 2'' BSP FF 24 V AC | 092127M | S1013092 |
€178.93
(excl. btw)
|
add to cart |
| BSP FF Brass DN50 - 2'' 24 V AC Flanged PN16 | 092128M | S1013093 |
€248.64
(excl. btw)
|
add to cart |
| BSP FF Brass DN65 - 2''1/2 24 V AC Flanged PN16 | 092129M | S1013094 |
€497.26
(excl. btw)
|
add to cart |
| BSP FF Brass DN80 - 3'' 24 V AC Flanged PN16 | 092130M | S1013095 |
€504.24
(excl. btw)
|
add to cart |
| BSP FF Brass DN100 - 4'' 24 V AC Flanged PN16 | 092131M | S1013096 |
€880.66
(excl. btw)
|
add to cart |
| BSP FF Brass DN125 - 5'' 24 V AC Flanged PN16 | 092132M | S1013097 |
€1,693.93
(excl. btw)
|
add to cart |
| BSP FF Brass DN150 - 6'' 24 V AC Flanged PN16 | 092133M | S1013098 |
€1,726.49
(excl. btw)
|
add to cart |
| BSP FF Brass DN200 - 8'' 24 V AC Flanged PN16 | 092134M | S1013099 |
€3,846.86
(excl. btw)
|
add to cart |
